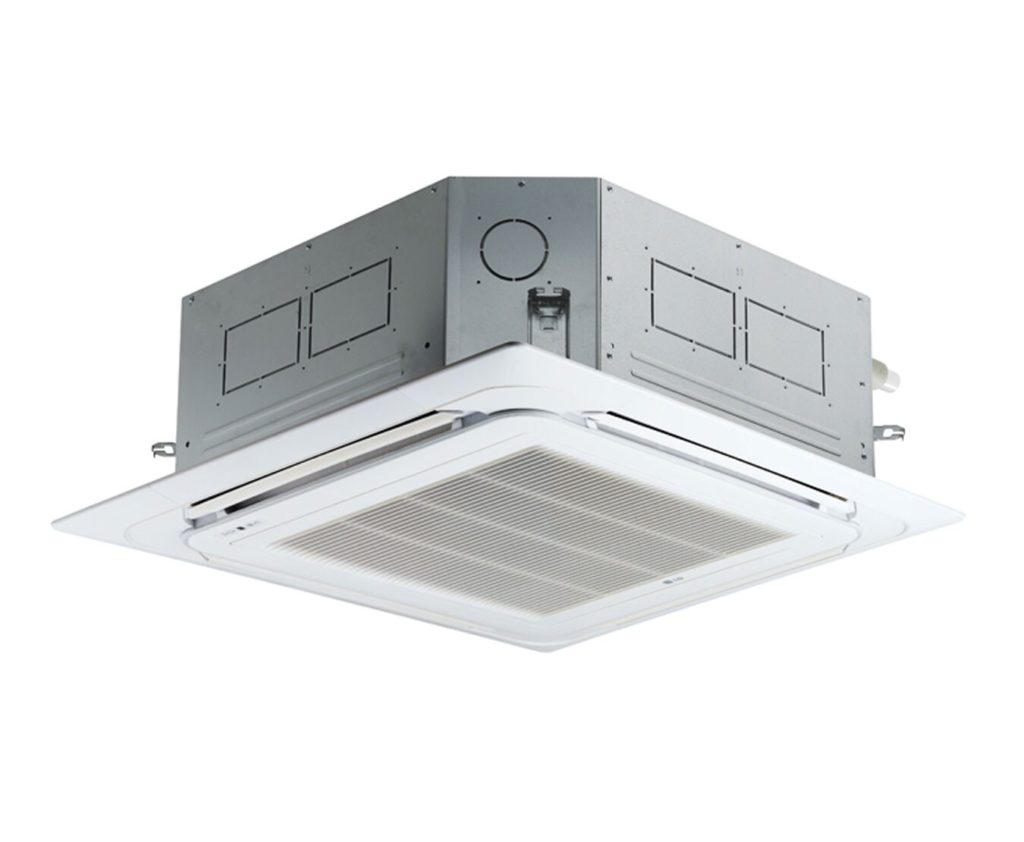

LG Cassette Air Conditioner – Inverter 14.6 Kw

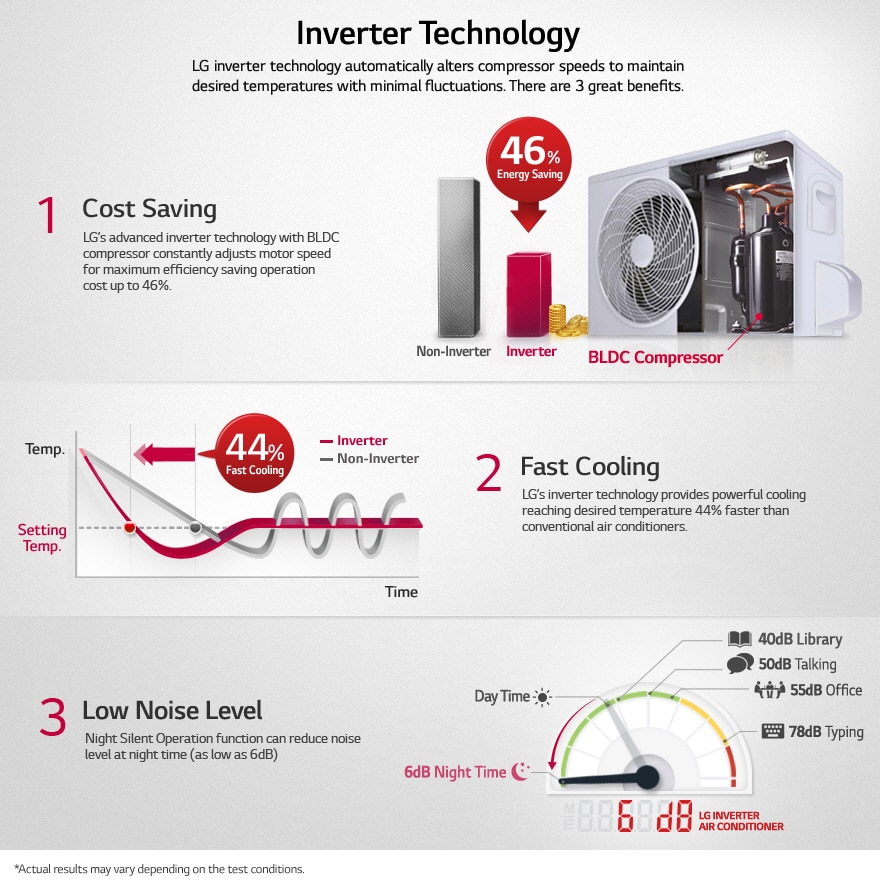

  • Inverter Technology
  • Fast Cooling
  • Energy Savings
  • Low Noise Level
  • Wide Operation Range up to 48°C
ENQUIRE NOW
ENQUIRE NOW

LG Commercial Air Conditioner Introduction

Watch the Full Movie

Super Energy Saving

Powerful Cooling

Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Cassette
    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    49 / 47 / 45 dB(A)
    Refrigerant Type
    R410A
  • Operation Range - Cooling
    -15â„Æ' ~ 48â„Æ'
    Operation Range - Heating
    -18â„Æ' ~ 18â„Æ'

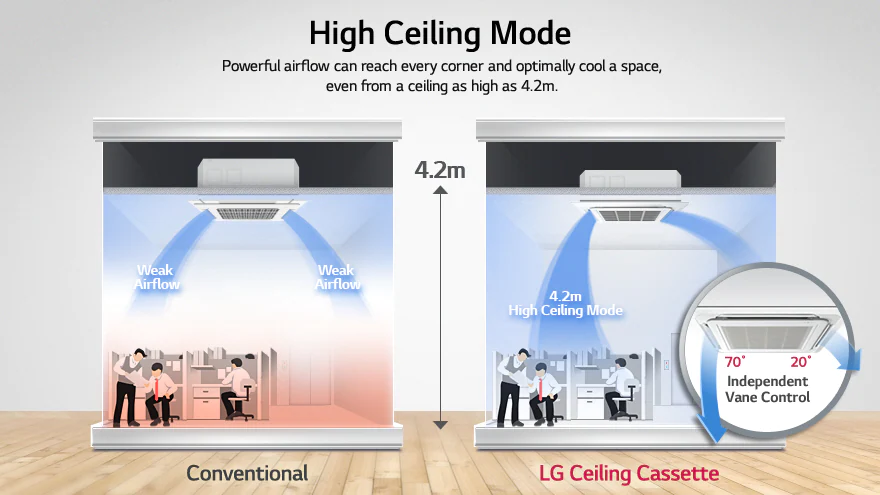

  • High Ceiling Mode
    Yes
    Clean Air Filteration
    Yes
  • Independent Vane Operation
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (Φ / V / Hz) - Indoor
    1/220~240/50
    Power Supply (Φ / V / Hz) - Outdoor
    3/380~415/50
  • Capacity (Min / Nom / Max) - Cooling
    5.9 / 14.6 / 16.3 (kW)
    Capacity (Min / Nom / Max) - Heating
    6.8 / 16.9 / 18.7 (kW)
  • Power Input (Set) - Cooling
    5.40 kW
    Power Input (Set) - Heating
    5.50 kW
  • EER
    2.700 Btu/h/W
    COP
    3.070 Btu/h/W

INDOOR UNIT

  • Running Current - Cooling
    7.8 A
    Running Current - Heating
    8.0 A
  • Air Flow Rate (H/M/L)
    34.0 / 32.0 / 30.0 CMM
    Dehumidification Rate
    5.5 â„“/h
  • Drain (O.D. / I.D.)
    Ø 32 / 25 mm
    Body Dimensions (W x H x D)
    840 x 288 x 840 mm
  • Panel Dimensions (W x H x D)
    950 x 25 x 950 mm
    Net Weight
    24.6 kg

OUTDOOR UNIT

  • Compressor Type
    Rotary
    Sound Level (H) - Cooling
    52 dB(A)
  • Sound Level (H) - Heating
    54 dB(A)
    Dimensions (W x H x D)
    950 x 1,380 x 330 mm
  • Net Weight
    96 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 15.88 mm
    Max. Piping Length (Main Piping)
    75 m
  • Max. Elevation Difference (Indoor-Outdoor)
    30 m

WHERE TO INSTALL

  • Residence
    Yes
    Shops
    Yes
  • Restaurant
    Yes
    Office
    Yes
  • Hospital
    Yes
    Hotel
    Yes
