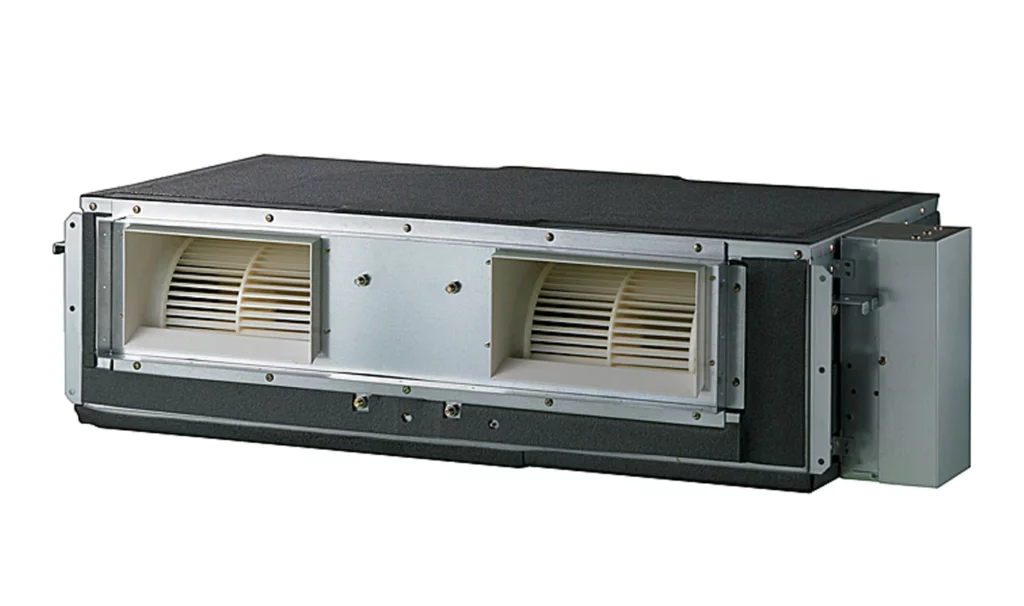

LG Hide Away Air Conditioner – Inverter 14.8 Kw

  • Inverter Technology
  • Fast Cooling
  • Energy Savings
  • Low Noise Level
  • Wide Operation Range up to 48°C
  • E.S.P. (External Static Pressure) Control
ENQUIRE NOW
ENQUIRE NOW

LG Commercial Air Conditioner Introduction

Watch the Full Movie

Super Energy Saving

Smart Cooling

Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Concealed Duct

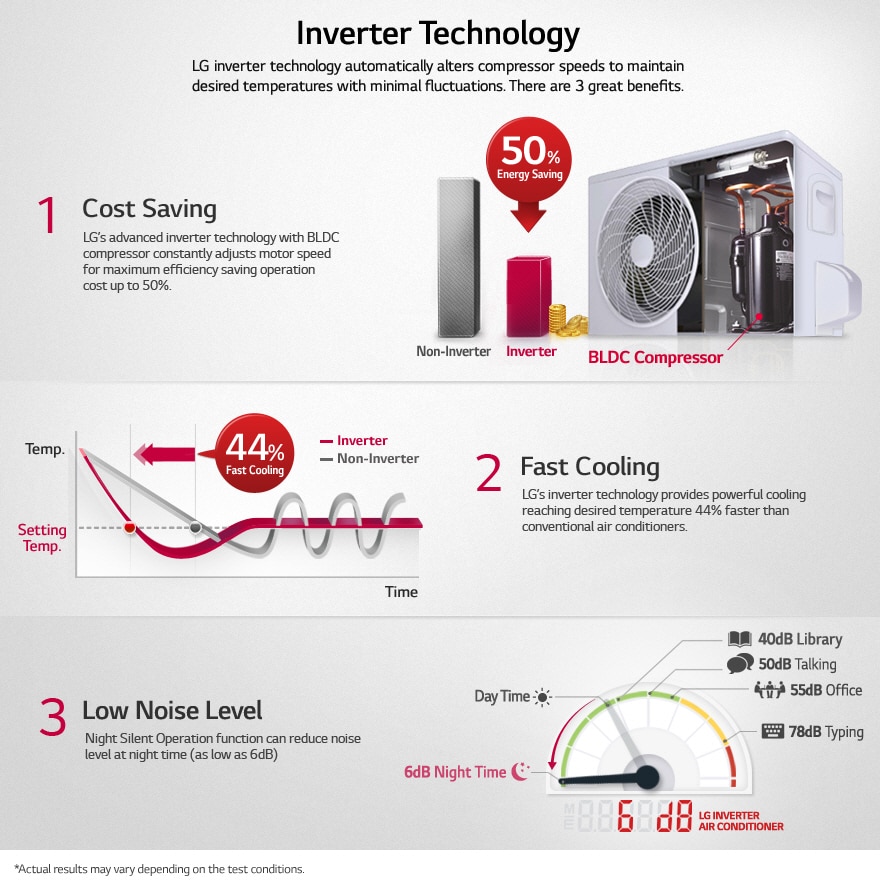

    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    46 / 44 / 42 dB(A)
    Refrigerant Type
    R410A
  • Operation Range - Cooling
    -15â„Æ' ~ 48â„Æ'
    Operation Range - Heating
    -18â„Æ' ~ 18â„Æ'
  • E.S.P
    Yes
    Two Thermistors Control
    Yes
  • Energy saving (zero power consumption, standby mode)
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (Φ / V / Hz) - Indoor
    1/220~240/50
    Power Supply (Φ / V / Hz) - Outdoor
    3/380~415/50
  • Capacity (Min / Nom / Max) - Cooling
    5.9 / 14.8 / 16.3 (kW)
    Capacity (Min / Nom / Max) - Heating
    6.8 / 16.8 / 18.7 (kW)
  • Power Input (Set) - Cooling
    5.1 kW
    Power Input (Set) - Heating
    4.5 kW
  • EER
    2.9 Btu/h/W
    COP
    3.7 W/W

INDOOR UNIT

  • Running Current - Cooling
    7.3 A
    Running Current - Heating
    6.5 A
  • Air Flow Rate (H/M/L)
    50.0 / 45.0 / 40.0 CMM
    External Static Pressure
    6 ~ 14 mmAq
  • Dehumidification Rate
    6.5 â„“/h
    Drain (O.D. / I.D.)
    Ø 32 / 25 mm
  • Body Dimensions (W x H x D)
    1,230 x 380 x 590 mm
    Net Weight
    49 kg

OUTDOOR UNIT

  • Compressor Type
    Twin Rotary
    Sound Level (H) - Cooling
    52 dB(A)
  • Sound Level (H) - Heating
    54 dB(A)
    Dimensions (W x H x D)
    900 x 1,165 x 370 mm
  • Net Weight
    96 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 15.88 mm
    Max. Piping Length (Main Piping)
    75 m
  • Max. Elevation Difference (Indoor-Outdoor)
    30 m

WHERE TO INSTALL

  • Residence
    Yes
    Shops
    Yes
  • Restaurant
    Yes
    Office
    Yes
  • Hospital
    Yes
    Hotel
    Yes
