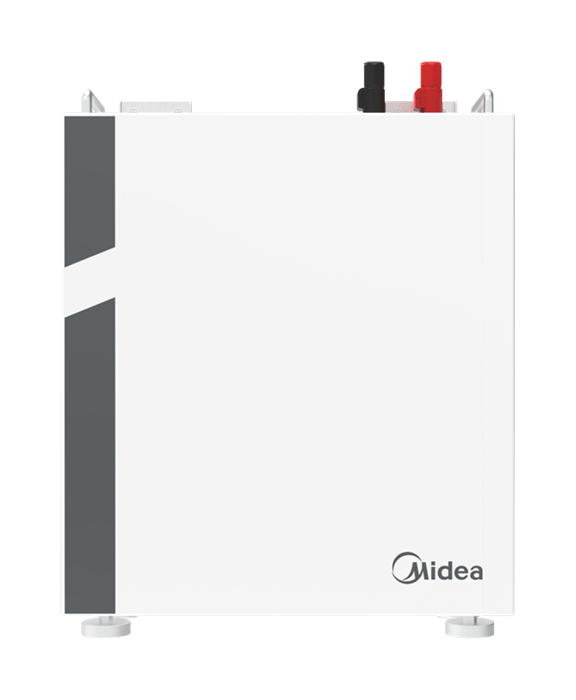

ME-B5L-S
Smart Low Voltage Energy Storage 5kWh
Compatible with Midea Single Phase Hybrid Inverter
- Reliable & Friendly installation
- Patented charging & discharging technology
- Flexible Expansion
- 5 Year Product Warranty 10 Year Performance Warranty
Reliable & Friendly Installation
- CATL Grad-A battery cells inside
- Wall/floor mount with mating connector to make installation easier
- Compact size, 53kg light weight
Patented Charging & Discharging Technology
- Auto cell balance technology ensures long lifetime
- Smooth battery charge/discharge current
Flexible Expansion
- Supports multiple expansions options - refer to user manual
- Max Scale up to 5kWh x 15 battery units in Parallel (max 75kWh on DC)
- Max Scale up to 3 x 5Kwh Inverters in Parallel (max 75kWh batteries x 3 = 225kWh Max on AC)
Battery Parameters
Nominal Voltage
51.2V
Nominal Energy
5.12kWh
Discharge Voltage
45 ~ 54V
Charge Voltage
51.5 ~ 57.6V
Con. Charging Current
60A
Con. Discharging Current
60A
Max. Discharging Current
99A
Con. Discharging DC Power
3000W
Max. Discharge DC Power
5000W
Operating Temperature
Charge: 0 ~ 50°C
Discharge: -20 ~ 50°C
General Data
Scalability
Paralleling Max 15,
refer to user manual
DoD
90%
Communication
CAN/RS485
Cycle Life
≥6000cycles
IP Grade
IP31
Installation
Wall Mount / Floor-standing
Dimension
450*205*535(mm)
Weight
53Kg
Warranty
5 years product
10 years performance
Certification
UN38.3/CE/IEC62619
* When the temperature < 0°C or > 45°C, the product performance is limited.
